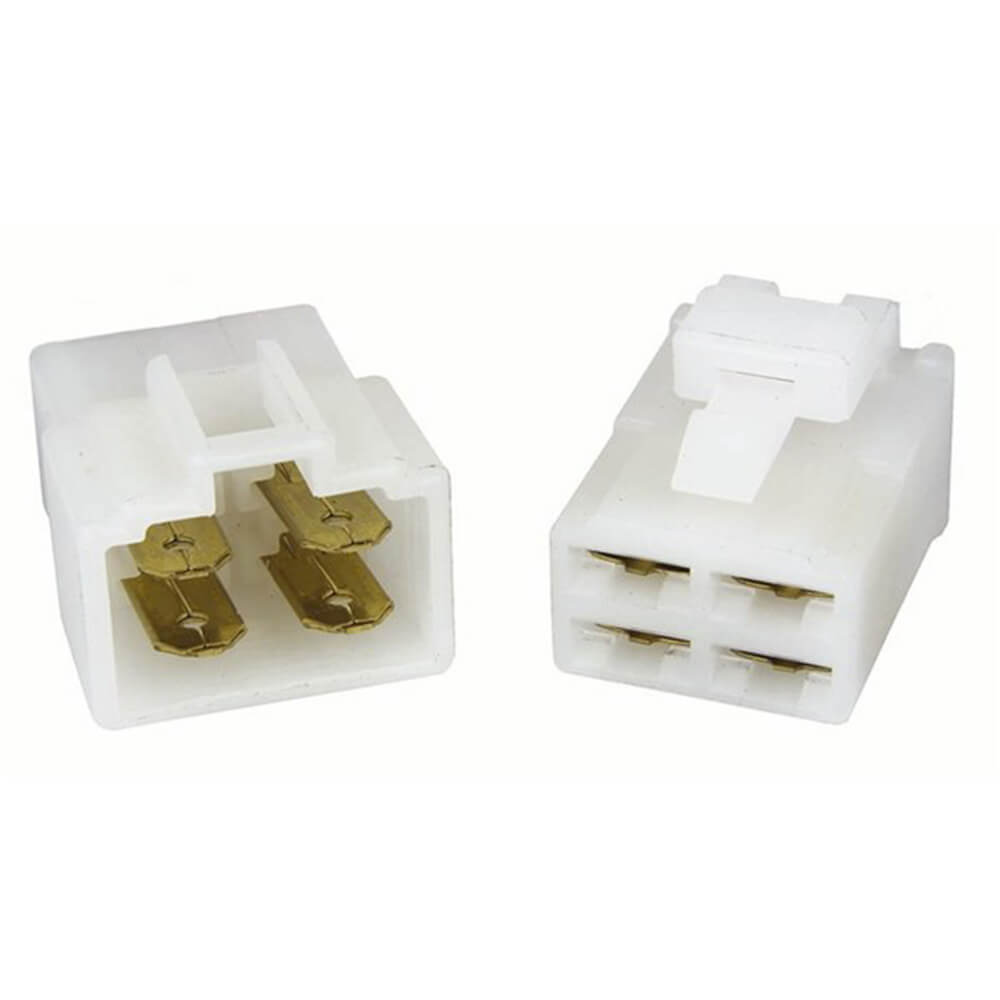

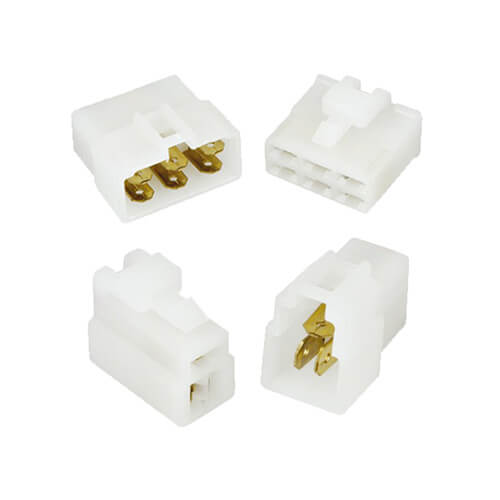

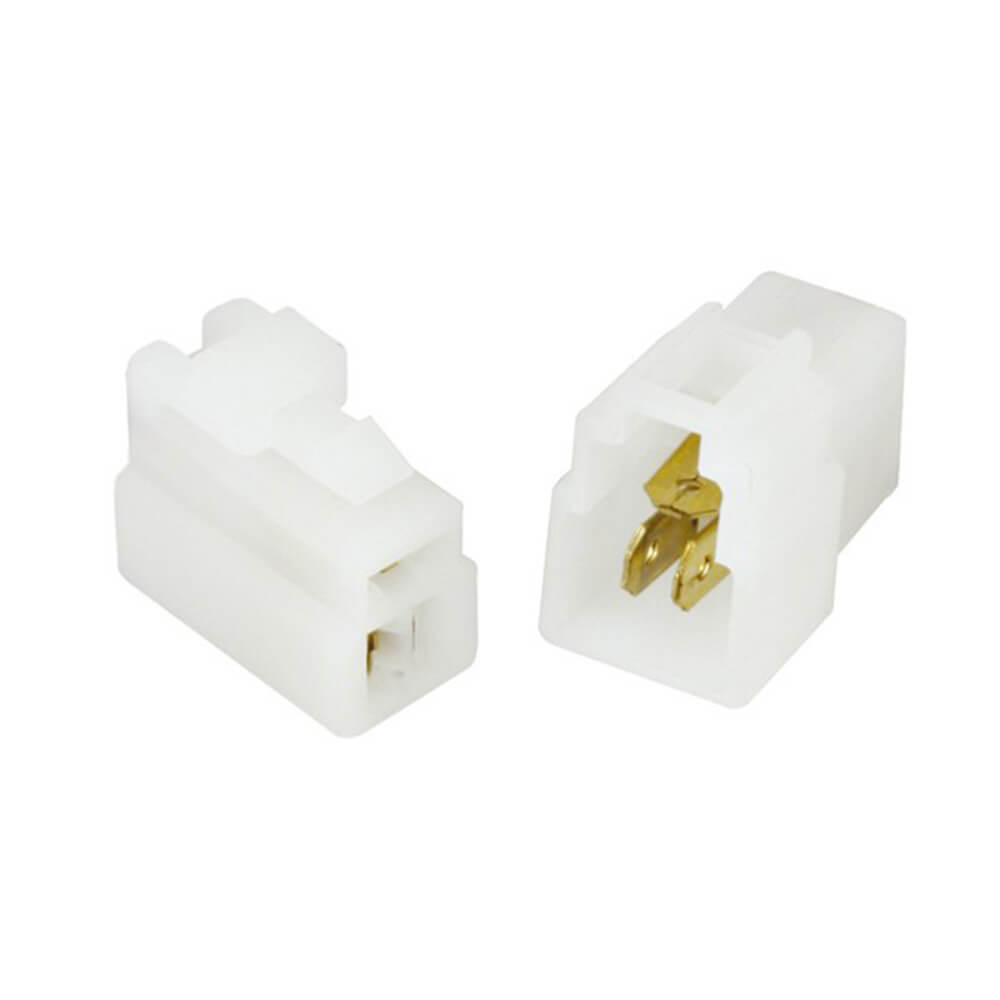

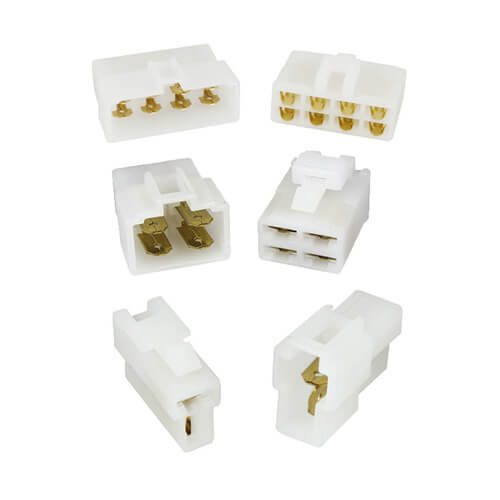

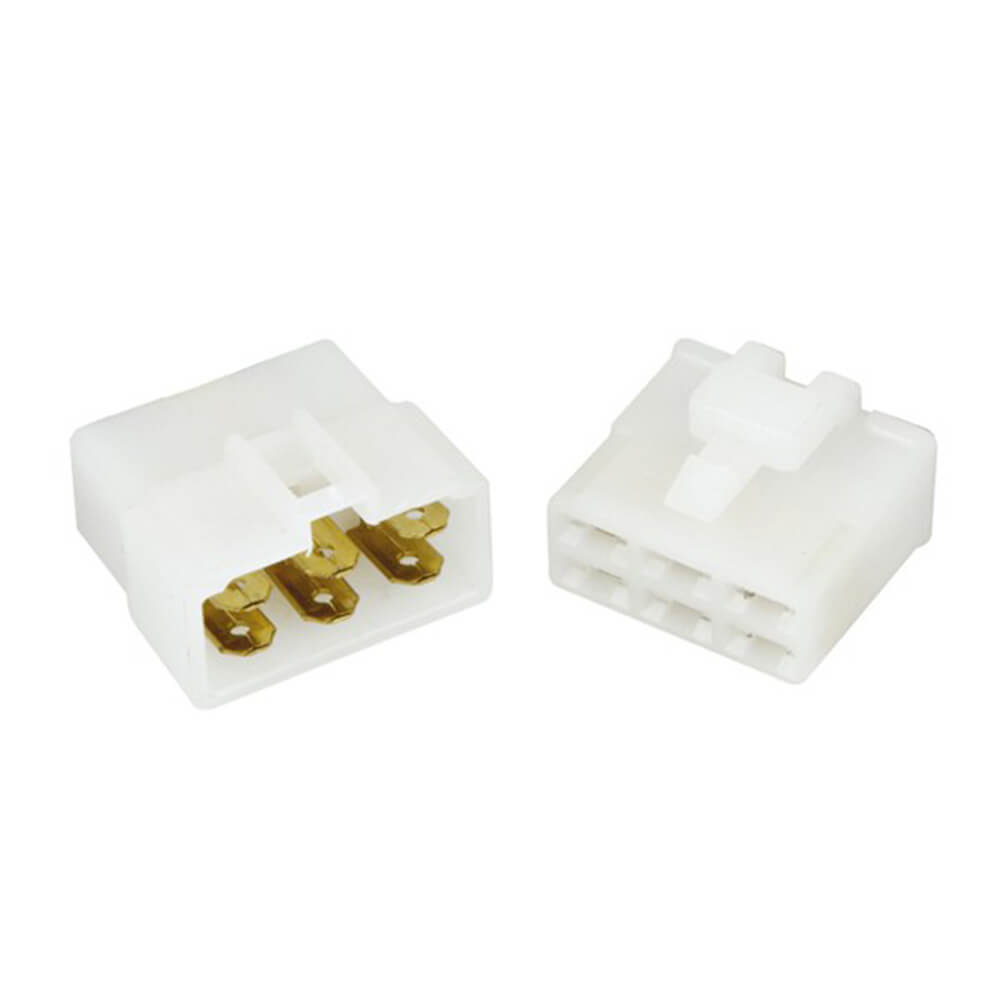

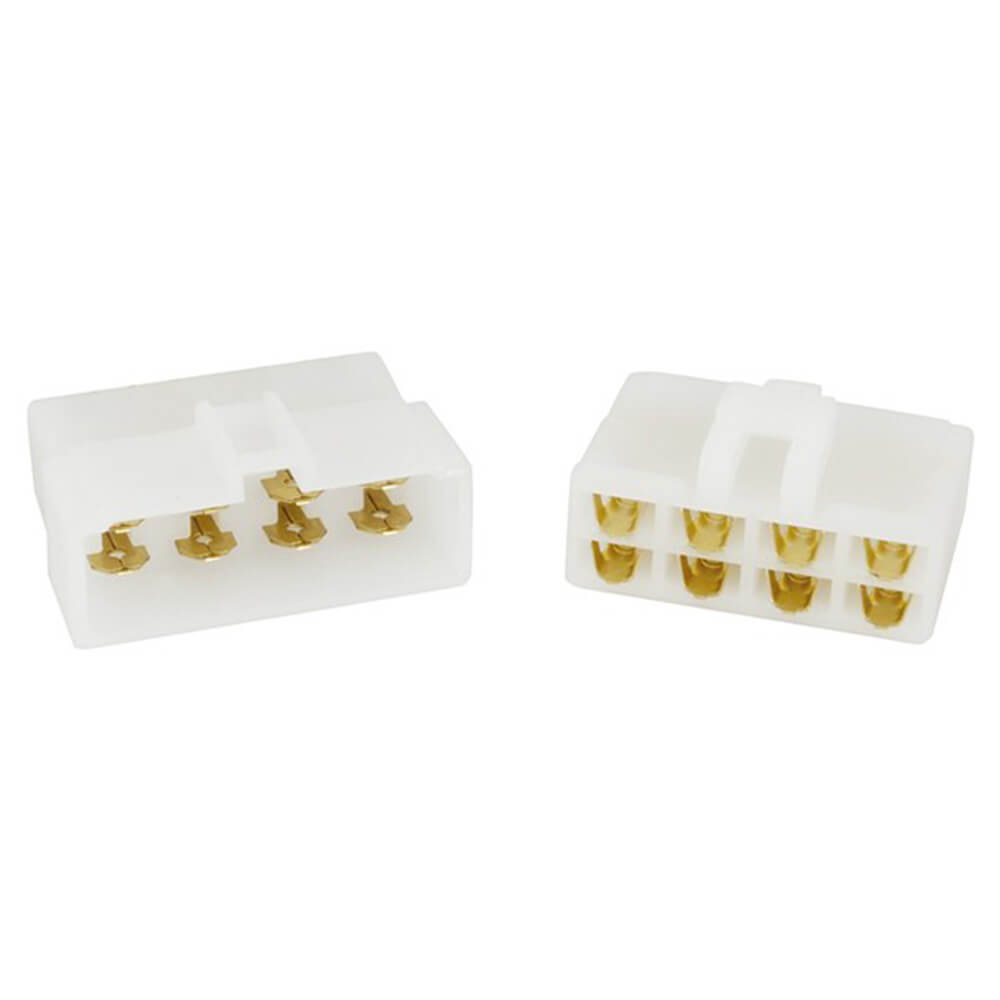

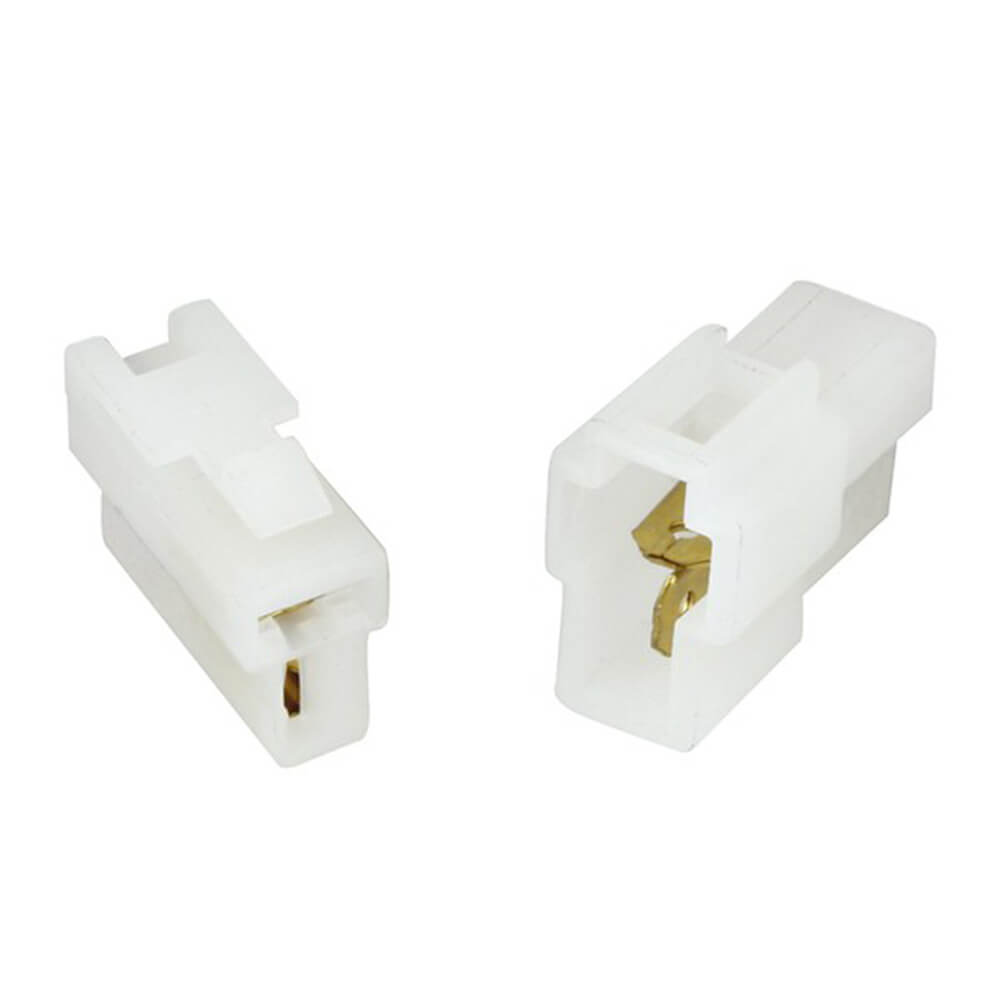

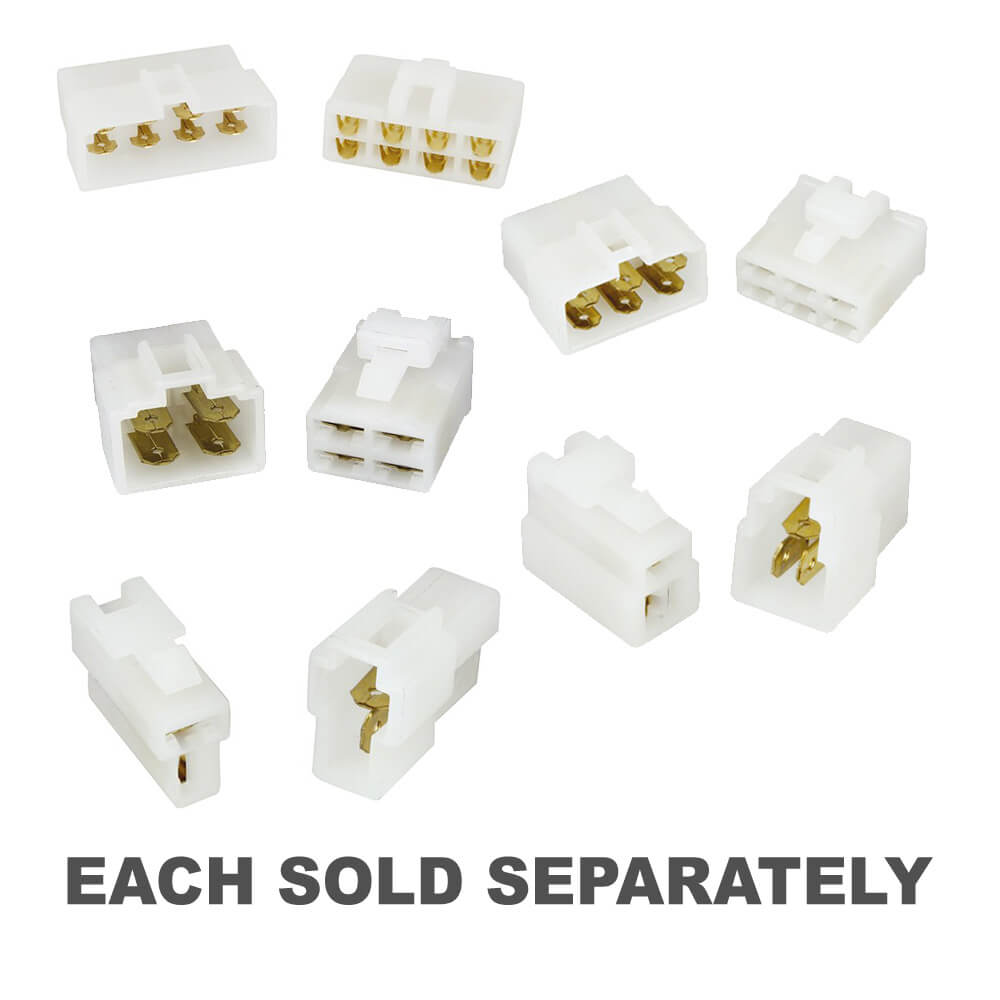

This range of connectors is commonly used in automotive applications such as stereo and CB installations, or for replacements in existing wiring. The housings interlock and they come in 2, 3, 4 or 6 way sets. Each comes with plug, socket, and male and female locking spade lugs.
> crimp terminals accept: 20-14awg wire (0.5-2.0mm^2)
> temp range: -30 - 105degC
> max current: 15A with 14awg cable, 4A with 20awg cable
> typical application: low voltage vehicle wiring
Product Specifications
- Packaged Volume : 0.05l
- Packaged Weight : 0.01kg
- Packaged Length : 8.5cm
- Packaged Width : 6cm
- Packaged Height : 1cm
- Plug or Socket Type : 250 Series Automotive
- Device : Plug and Socket Set
- Attachment Method : Crimp
- Pack Quantity : 1pc
- Contacts / Pins : 2pc
- Case Material : Plastic
- Contact Material : Brass
- Colour Coded : White
- Length : 8.5 cm
- Width : 6 cm
- Height : 1 cm
