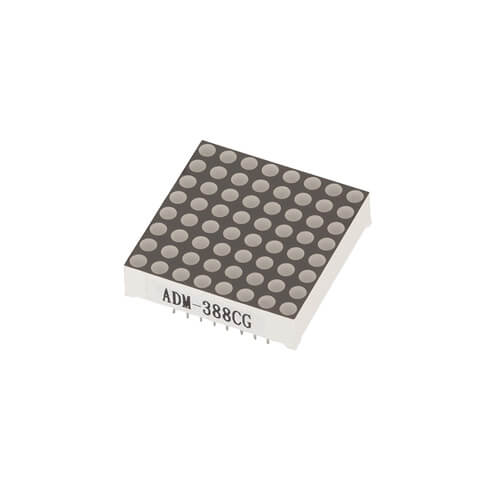

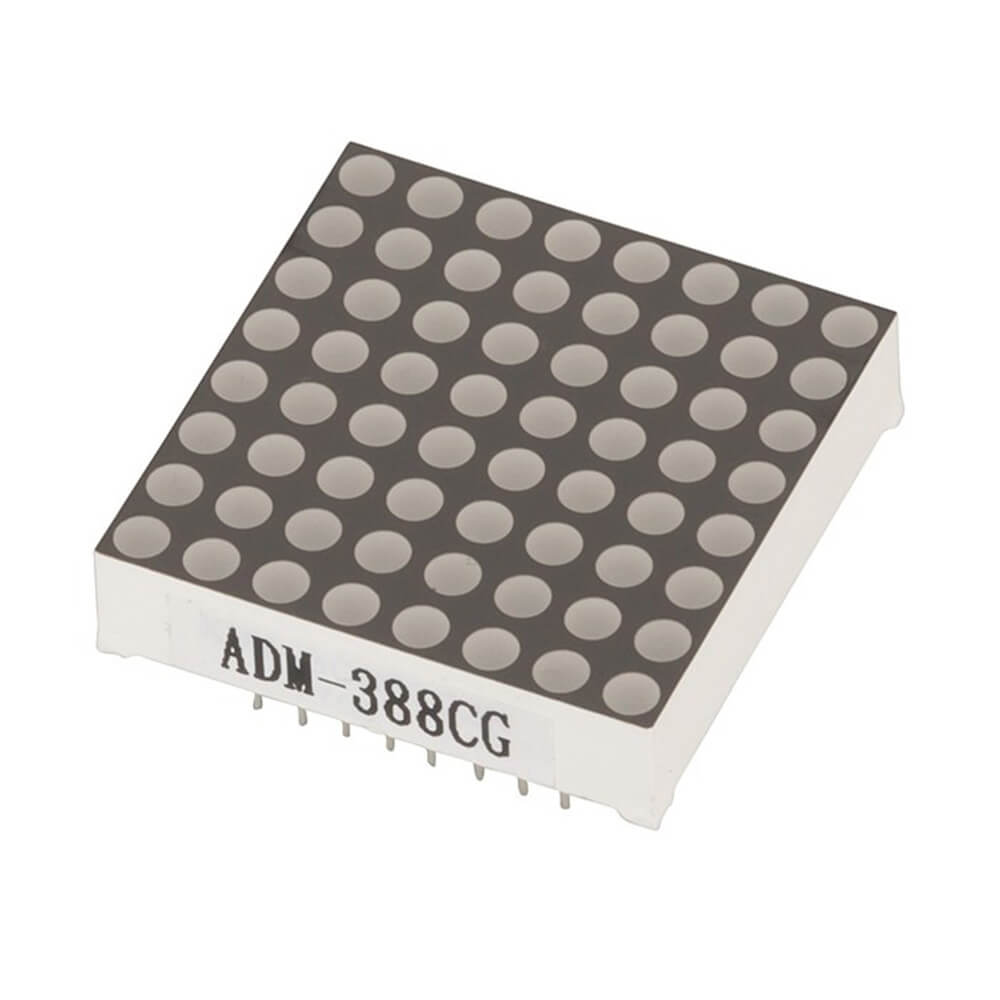

Green LED Matrix Module (8x8)

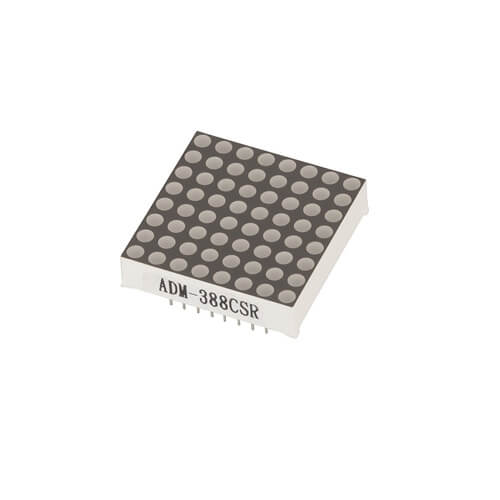

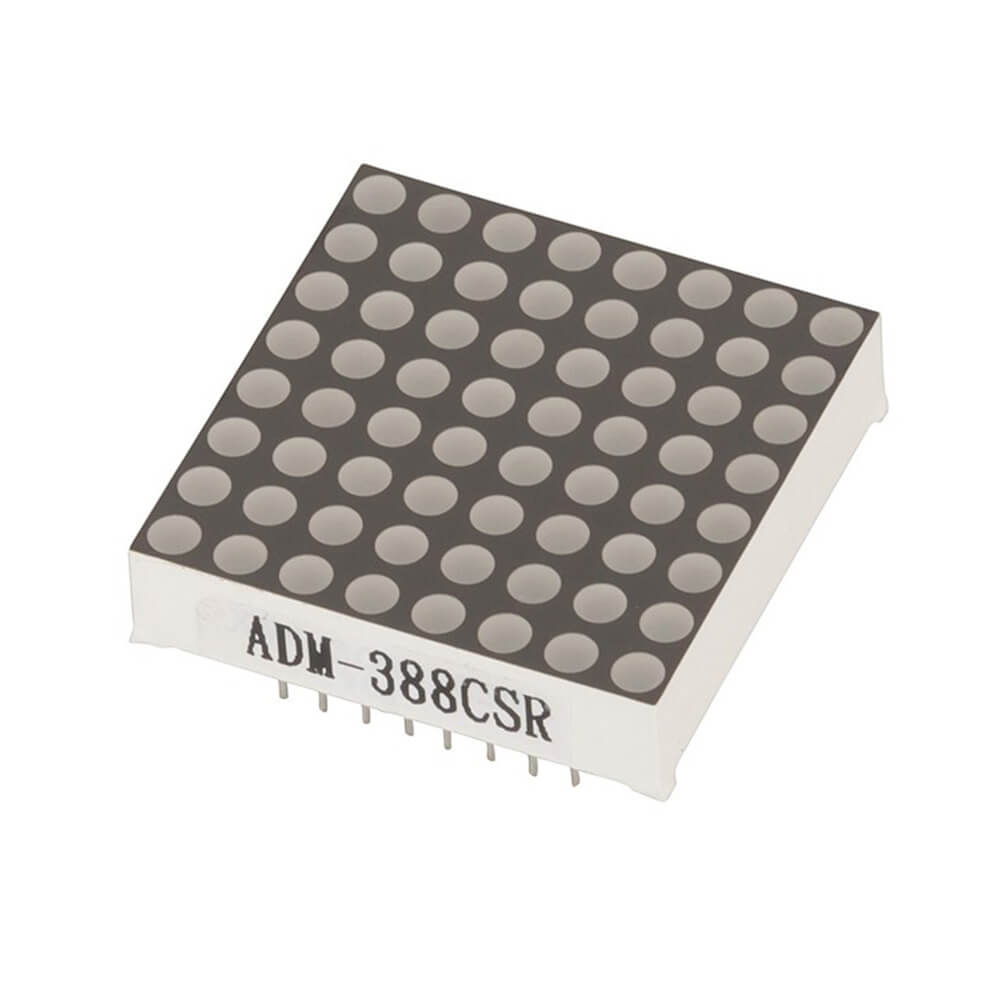

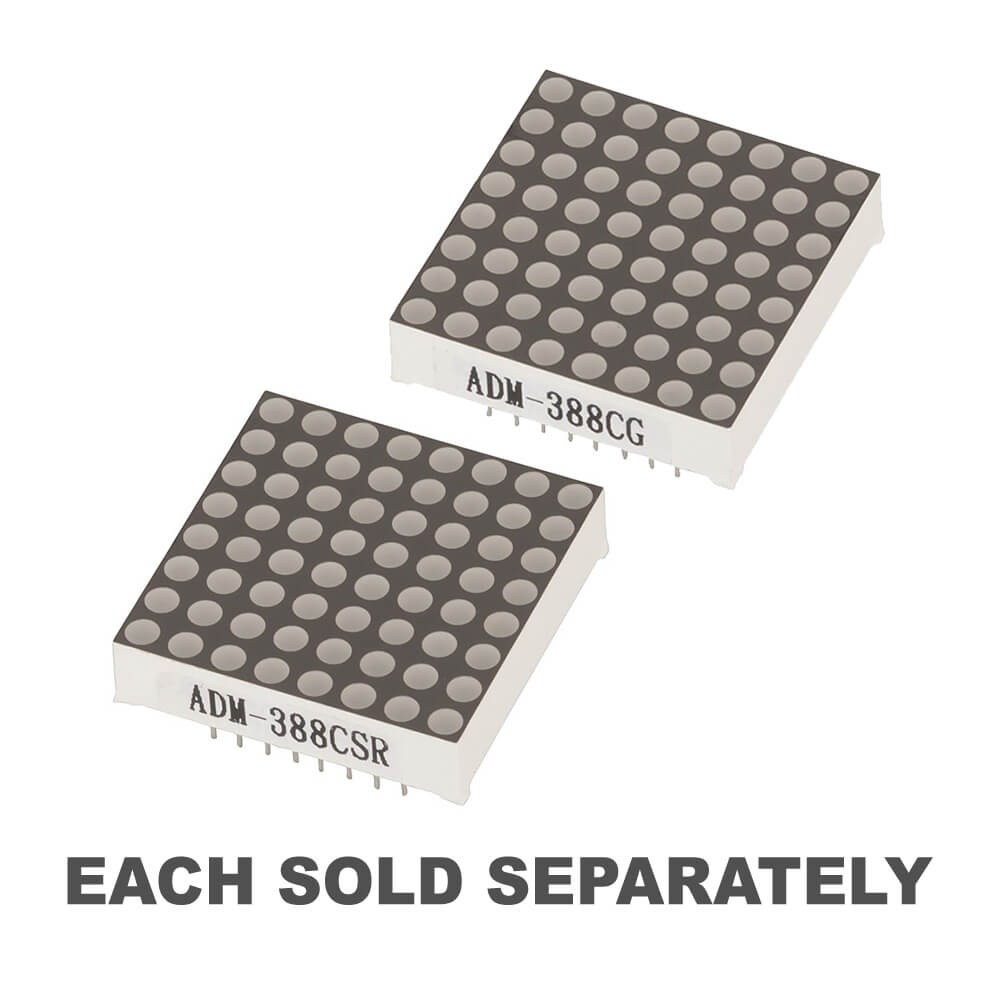

8x8 LED matrix module for simple graphical output display. Ideal for display of symbols, basic data, or graphics. 16 pin connection with 8 anode pins for column and 8 cathode pins for rows. Available in red or green.

Product Specifications

• Width : 32mm
• Height : 32mm
• Depth : 8mm
• Packaged Volume : 0.02l
• Packaged Weight : 0.01kg
• Packaged Length : 3.2cm
• Packaged Width : 3.2cm
• Packaged Height : 1.5cm
• Illumination Type : Single Colour
• Light Colour : Green
• Light Wavelength : 568nm
• Intensity : 15mcd
• Vf (typ) - Typical Forward Voltage : 2.2V
• If (typ) - Typical Forward Current : 40mA

• Length : 3.2 cm
• Width : 3.2 cm
• Height : 1.5 cm
