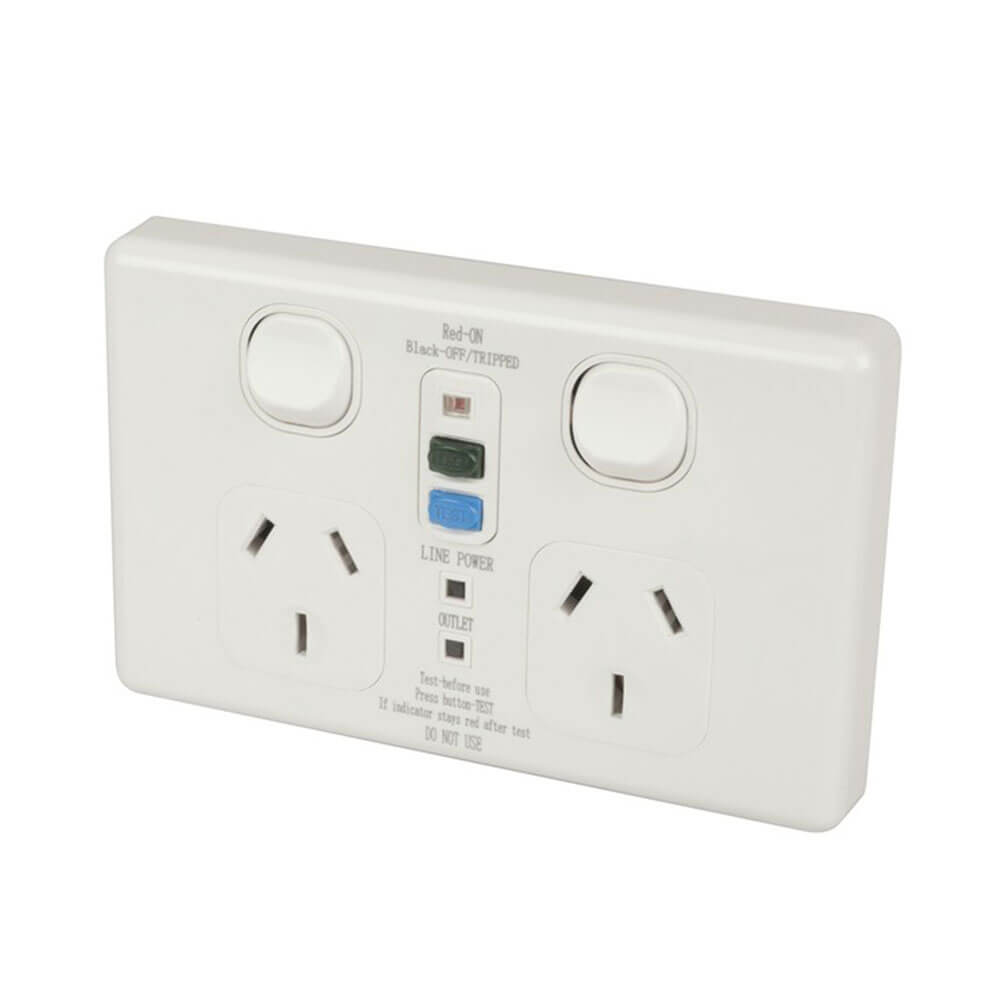

Powertech RCD Protected Double GPO Mains Socket 10A

Designed to be a direct replacement for your standard GPO fittings, combining two standard 240AC 10A mains (GPO) outlets with a built-in RCD to provide protection against electrical shock. In the event of a fault with the connected appliance or accident, such as cutting through the mains lead, the unit will provide complete isolation from mains. A test button, status indicator, and reset button allows you to check the RCD, which we recommend should be done each time before use.

Meets Australian and New Zealand safety standards.

Please Note: This item should be installed by a licenced electrician.

Product Specifications

• Electric shock protection
• LED status indicator
• Reset and test buttons
• Line power indicator
• CD Classified: Type II
• Rated Tripping Current: 30mA
• Operating Speed: <40mS Max.
• L/Nin-L/Nout: 2KV
• Endurance: 2000 Cycles Minute
• Contact Break: Double Pole
• Standards: RCD Module-AS NZS 3190, Socket-AS NZS 3112
• Minimum Back Box Depth: 35mm
• Fixing Screws: M3.0 x 25mm

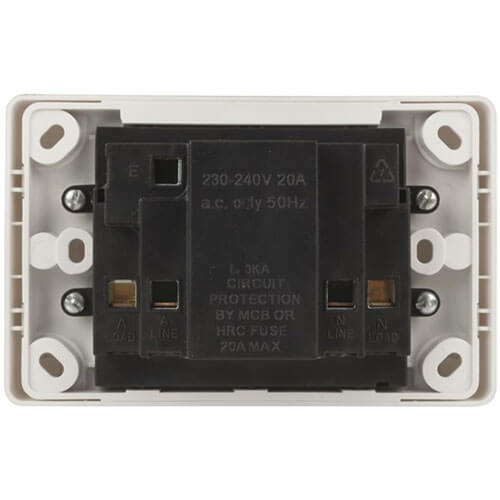

• Cable Capacity: 4x2.5mm2,2x4mm2,1X6mm2

• Length : 5 cm
• Width : 7.6 cm
• Height : 12 cm
