Short Circuits Three Project 10A Really Bright Flasher

Assembly Required

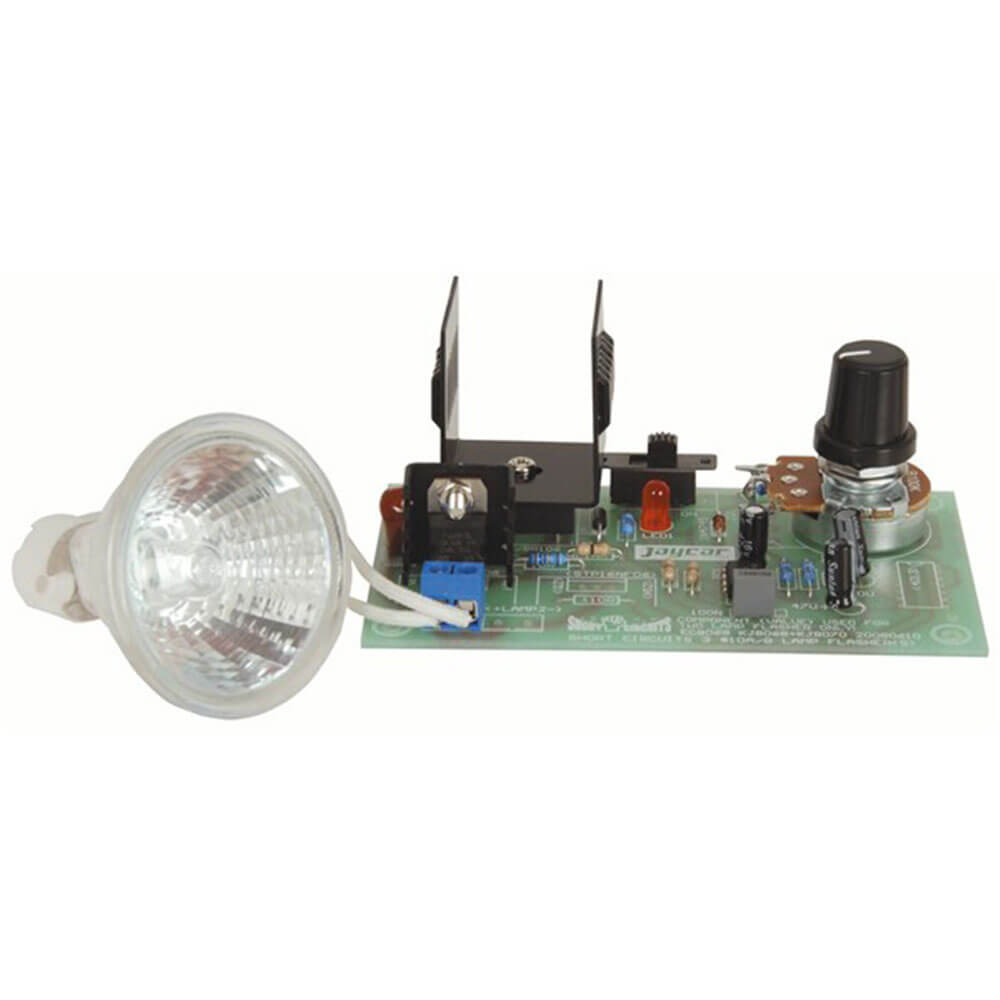

Attract attention with this bright halogen light flasher. The flash rate can be adjusted between 0.5 to 3.5 seconds. Kit includes PCB, 12V halogen lamp with base and all electronic components. Note: Do Not Use An Electronic Transformer. This circuit can be powered from either a 12V car battery or from a conventional 12VAC halogen lamp transformer (eg, Jaycar MP3044). Electronic (ie, switchmode) transformers are NOT suitable for use with this project, as their high switching frequency will cause the bridge rectifier and electrolytic capacitors to overheat.

Product Specifications

• Kit Form : Short Form (circuit only)
• Kit Group : Short Circuit Series
• Difficulty : Simple
• Application Field : Flasher
• Contains High Voltage Components : false
• Instructions Included : false
• Additional required items : 12VAC Power
• PCB Width : 60.0mm
• PCB Length : 105.0mm
• Volume Number : Volume 3
• Project Number(s) : 10A

• Length : 20 cm
• Width : 13 cm
• Height : 4 cm
