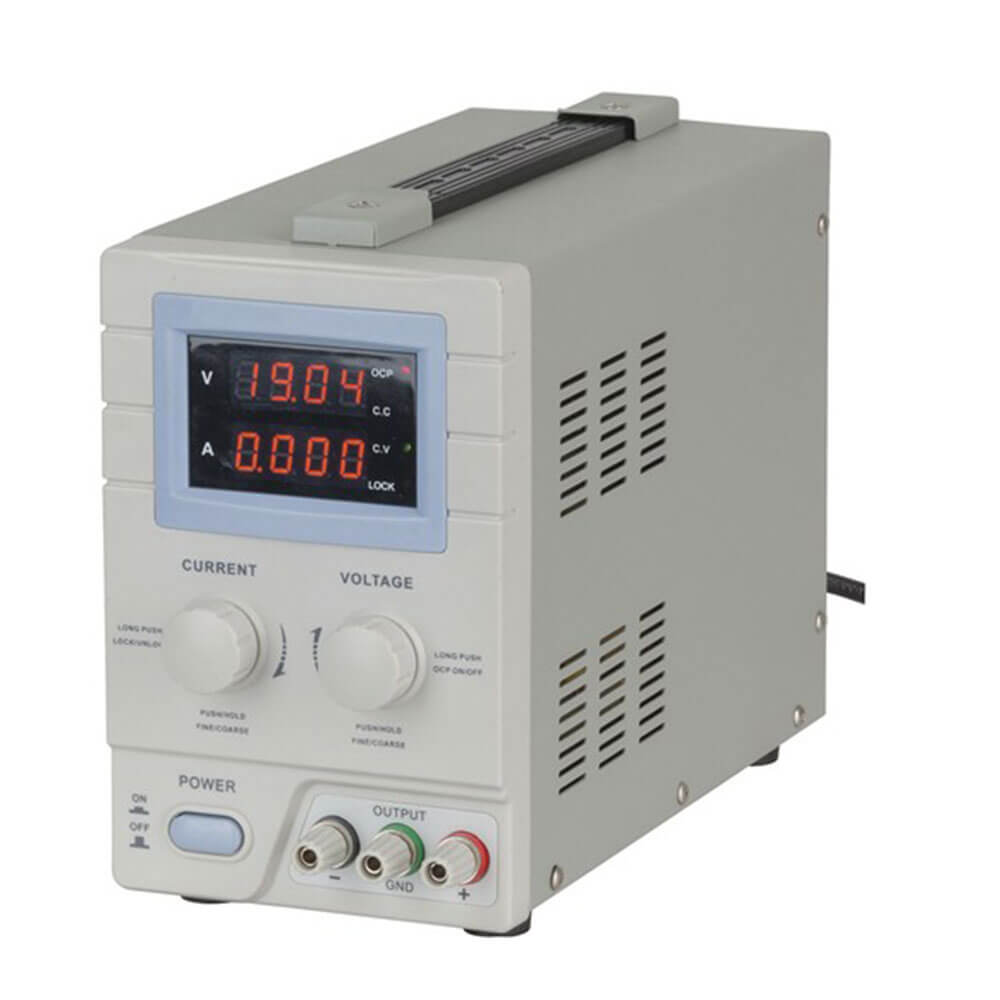

Regulated Laboratory Power Supply (0-30VDC/5A)

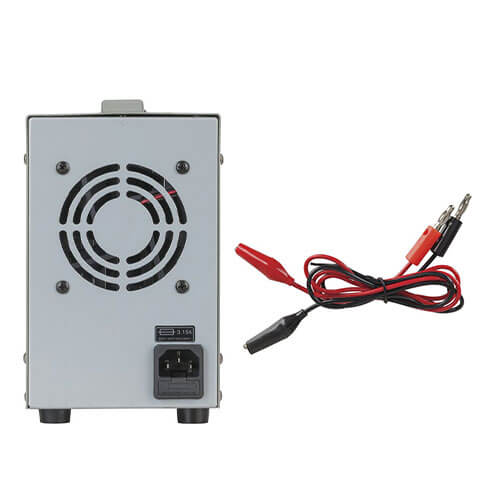

Power your devices with accuracy and the confidence that only comes with a professional lab power supply. Select precise voltage level and current limits to prevent overheating, burnout, and over-current. Of course the output is short-circuit protected too. The compact construction uses surface mount technology and a powerful internal cooling system to deliver a highly flexible power source. With ripple voltage a tiny 1mV, you know you're getting precisely the voltage required, reducing the risk of burnout or damage when testing and prototyping sensitive components. Output voltage is adjustable from 0 to 30VDC, and output current can be limited between 0 and 5A. Banana plug/binding posts provide output on the front of the unit, while a bright LED display keeps you informed. Includes a short banana to alligator lead set.

Features:

• Precise voltage level and current limit settings
• 1mV ripple voltage
• Avoid overheating, burnout, and over-current
• Easy-to-use LEDdisplay panel
• Input voltage: 220-240AC 50-60Hz
• Output voltage: 0-30VDC adjustable (10mV accuracy)
• Output current: 0-5A adjustable (1mA accuracy)
• Ripple current: 3mA

Product Specifications

• AC Voltage rating : 230.0V
• AC Frequency : 50.0Hz
• DC current rating : 5.0A
• DC Voltage : 30.0V
• Length : 270.0mm
• Width : 120.0mm
• Height : 185.0mm
• Weight : 4.8kg
• Mains Voltage Range : 220.0V, 240.0V
• Frequency : 50.0Hz
• Rated for AU Mains : true
• Rated for US Mains : false
• Auto-select mains voltage : false
• Mains Item connection : Standard IEC320 (C13/C14)
• Mains lead included : true
• Type of Power Supply : Laboratory
• Regulation Type : Regulated
• Voltage Display : true
• Current Display : true
• Output Connection : Banana 4mm (standard), Binding Post Terminals
• Number of Outputs : 1.0pc
• Ripple Voltage : 1.0mV

• Length : 30 cm
• Width : 20 cm
• Height : 24.5 cm
